Lift Trim Bracket Kit with Bushings - Version 1 - (13/16")

$28.00

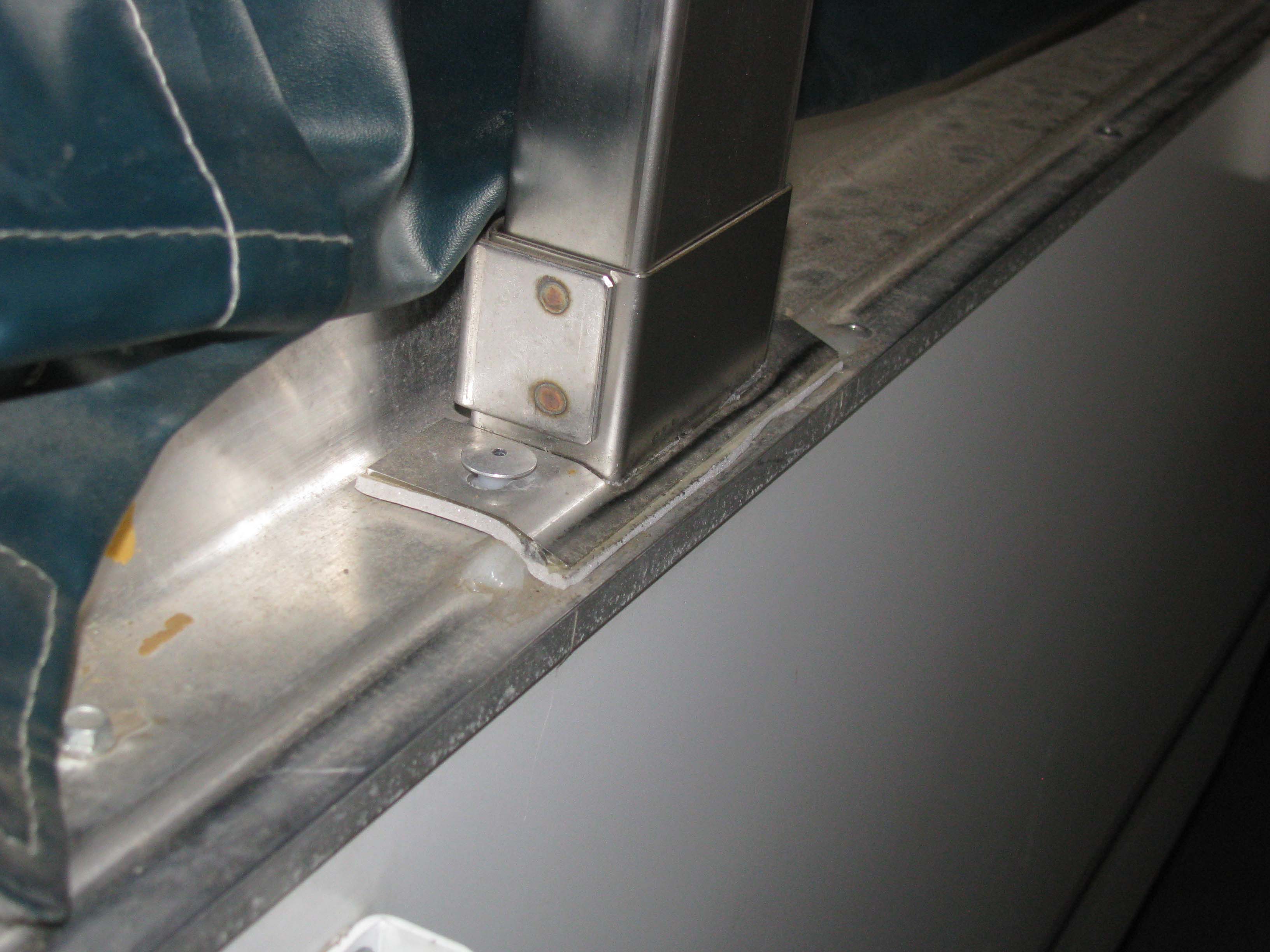

Take good care of your Coleman and Fleetwood series tent trailers with these durable, nice looking stainless steel lift trim brackets. Desiged to mount at the base of the lift posts in order to keep out the weather and debris. These quality stainless steel trim brackets will resist fatigue cracking common in aluminum parts.

Known to work on:

• 1990 Coleman Fleetwood Pioneer
• 1995 Coleman Fleetwood Rio Grande
• 1995 Coleman Fleetwood Royale
• 1999 Coleman Taos
• Early 2000 Fleetwood Wayside
• 2002 Coleman Laramie
• 2003 Coleman Laramie
• 2004 Fleetwood Niagara
• 2005 Fleetwood Highlander Niagara

These kits come with everything you need to replace your lift trim bracket. Included in this kit are the following items:

• 1 Lift Trim Bracket

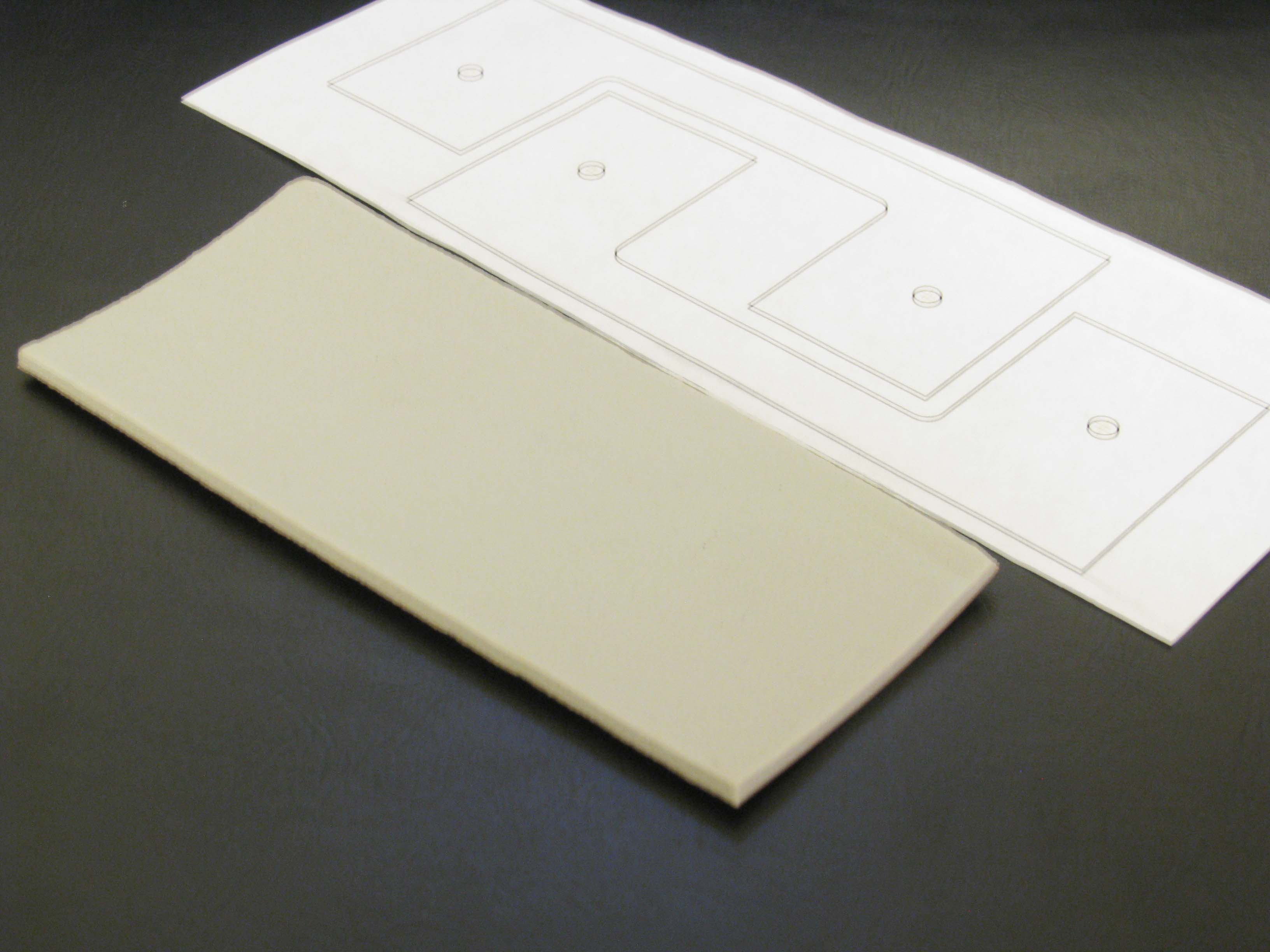

• 1 Gasket Blank
• 2 Wide Head Rivets

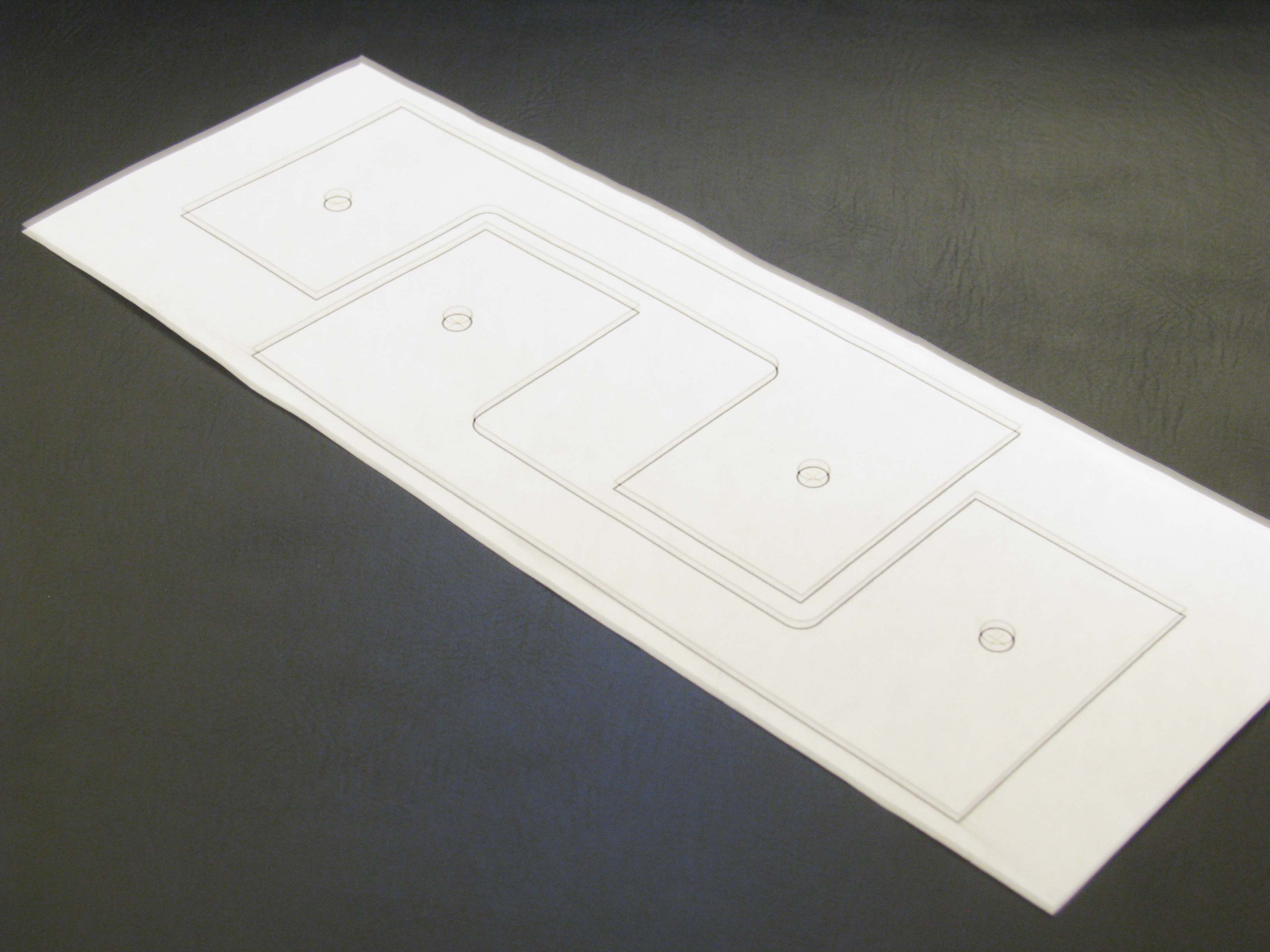

• 1 Template to cutout the proper sized gasket

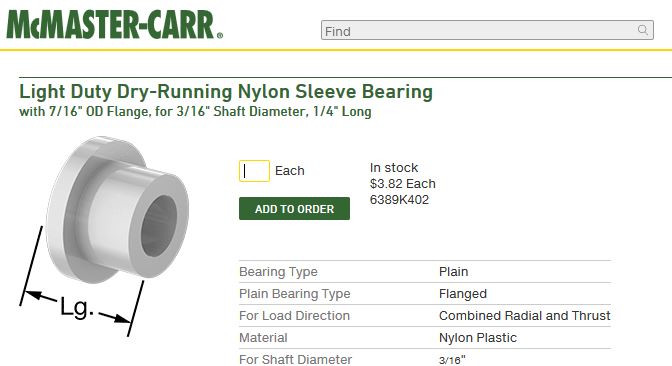

• 2 Nylon Bushings - note that these are not exact replacements. The originals are about 1/16" shorter but these are the closest available replacements we've found.

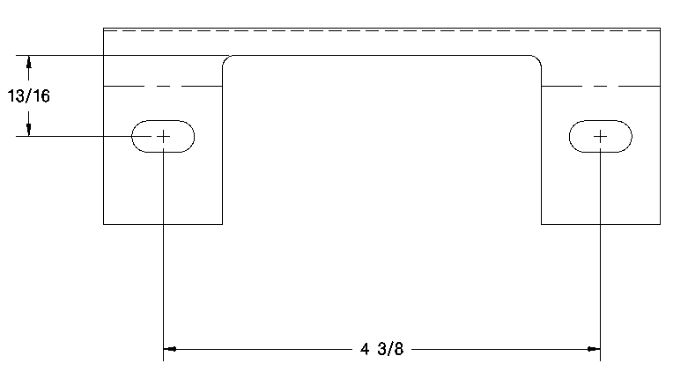

Before ordering, please determine that these will work on your trailer, measure the hole spacing on your existing brackets, and measure from the front edge of your lift post to the holes as shown in the last photo. If the dimensions that you measure are within 1/16 of an inch, then they should work great.




Material of construction: Stainless Steel

Link to YouTube instruction video.

Lift Trim Bracket Kit with Bushings - Version 2 - (1-1/4")

$28.00

The only difference between this version and version 1 is the distance between the center of the slotted holes to the front of the lift post on the trailer.

Known to work on:

• 2010 Fleetwood Bayside

These kits come with everything you need to replace your lift trim bracket except for a bushing that can commonly be reused. Included in this kit are the following items:

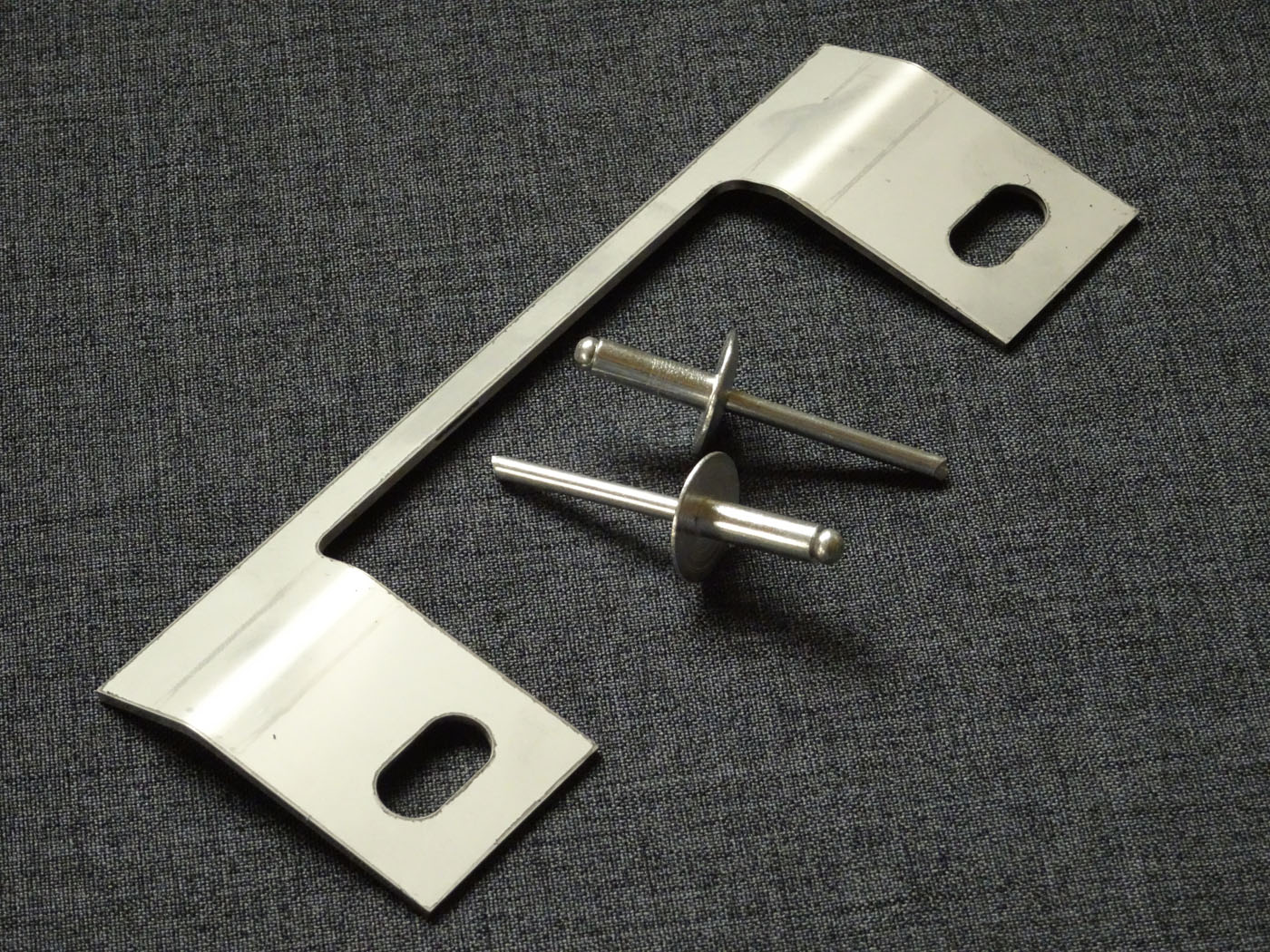

• 1 Lift Trim Bracket

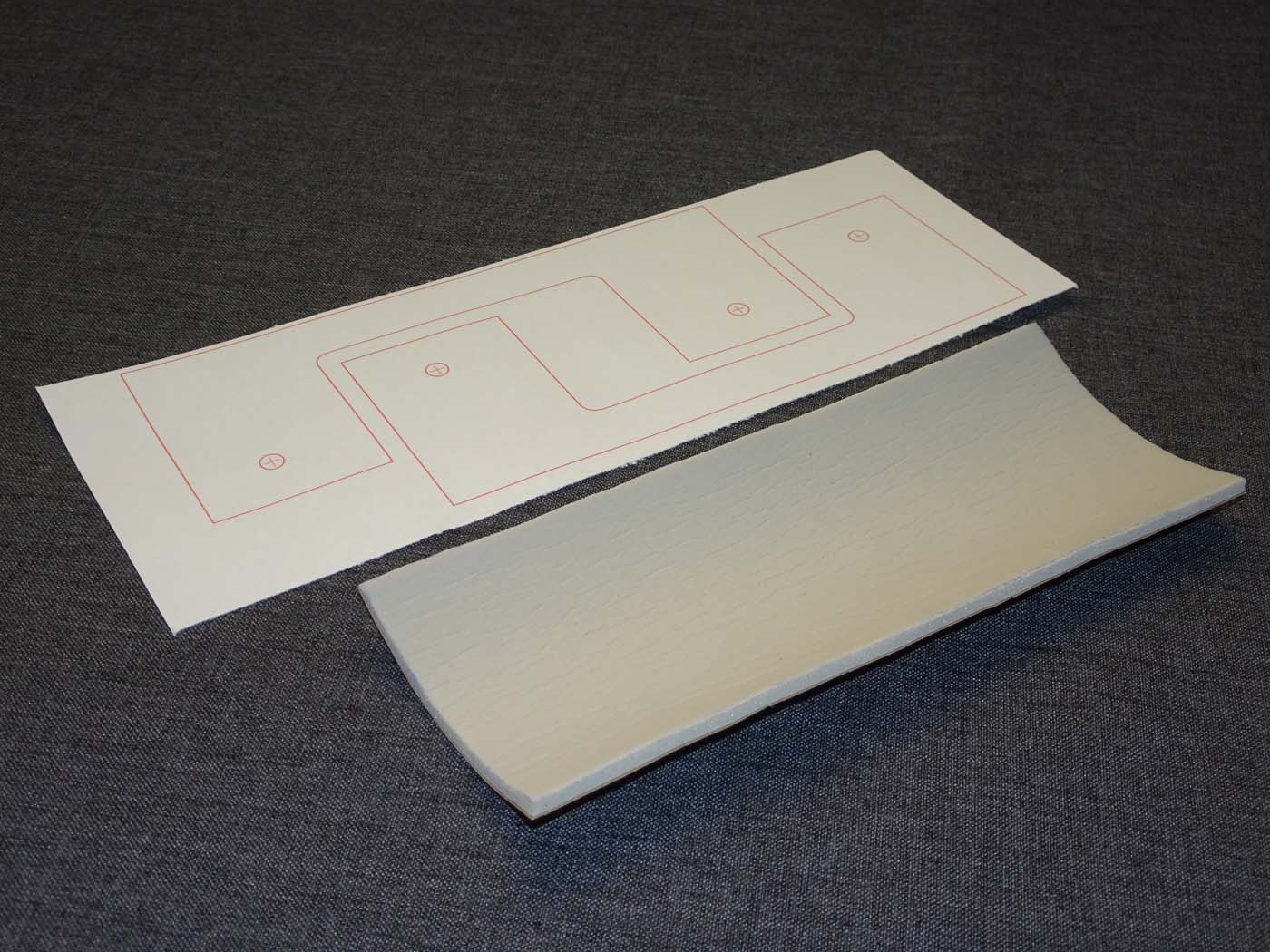

• 1 Gasket Blank
• 2 Wide Head Rivets

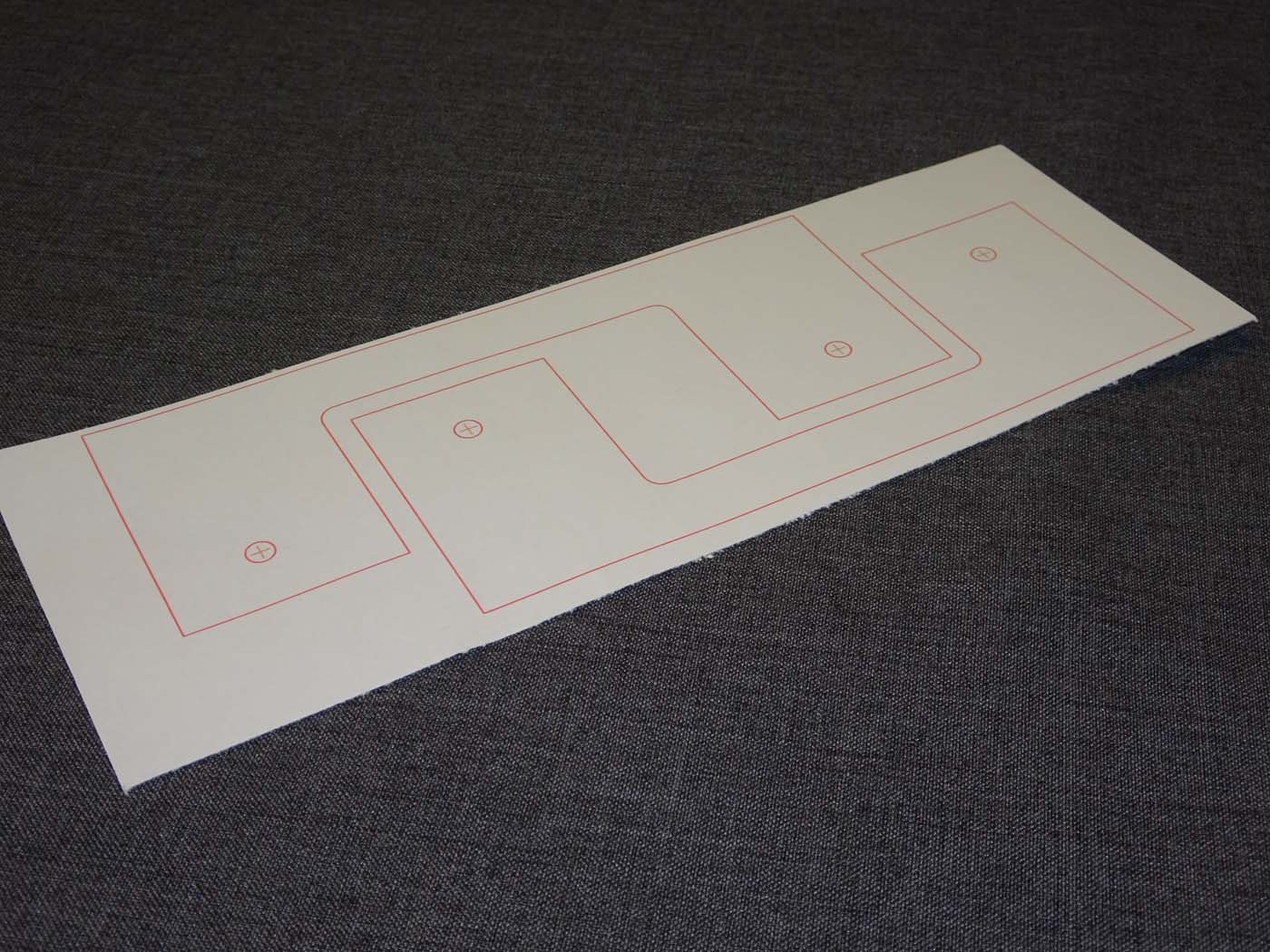

• 1 Template to cutout the proper sized gasket
• 2 Nylon Bushings - note that these are not exact replacements. The originals are about 1/16" shorter but these are the closest available replacements we've found.




Before ordering, please determine that these will work on your trailer, measure the hole spacing on your existing brackets, and measure from the front edge of your lift post to the holes as shown in the last photo. If the dimensions that you measure are within 1/16 of an inch, then they should work great.




If you're looking to save a few bucks, and would like a lift trim bracket kit without the bushings click

here. (Links to kit without bushings)





Material of construction: Stainless Steel

Link to YouTube instruction video.



Thanks for stopping by. D B Nimble.
